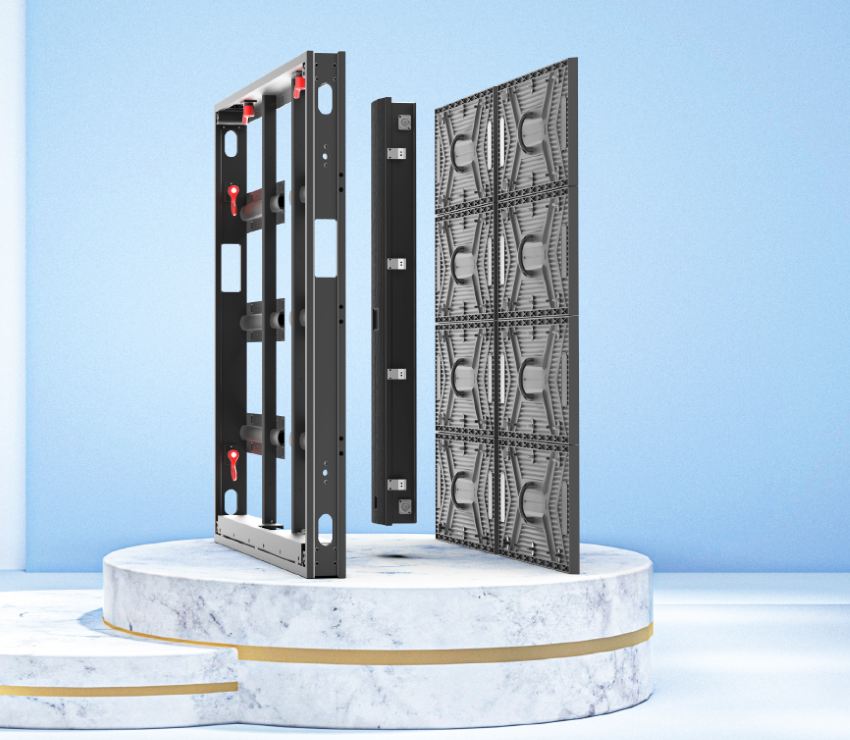

Fixed Series 1000*1000mm Profile aluminum cabinet for 500x250mm module

1. Product Basic Configuration

• Adopts 500×250mm modules with profile aluminum cabinets; the cabinet has an exquisite appearance, standardized design, and excellent processing technology, which greatly improves installation speed and display stability, and makes maintenance more convenient and safe.
• Provides two module chassis options: aluminum module chassis (1400g) and plastic module chassis.
• Cabinet size is 1000mm×1000mm×75mm, and cabinet weight is 25kg.

2. Core Product Advantages

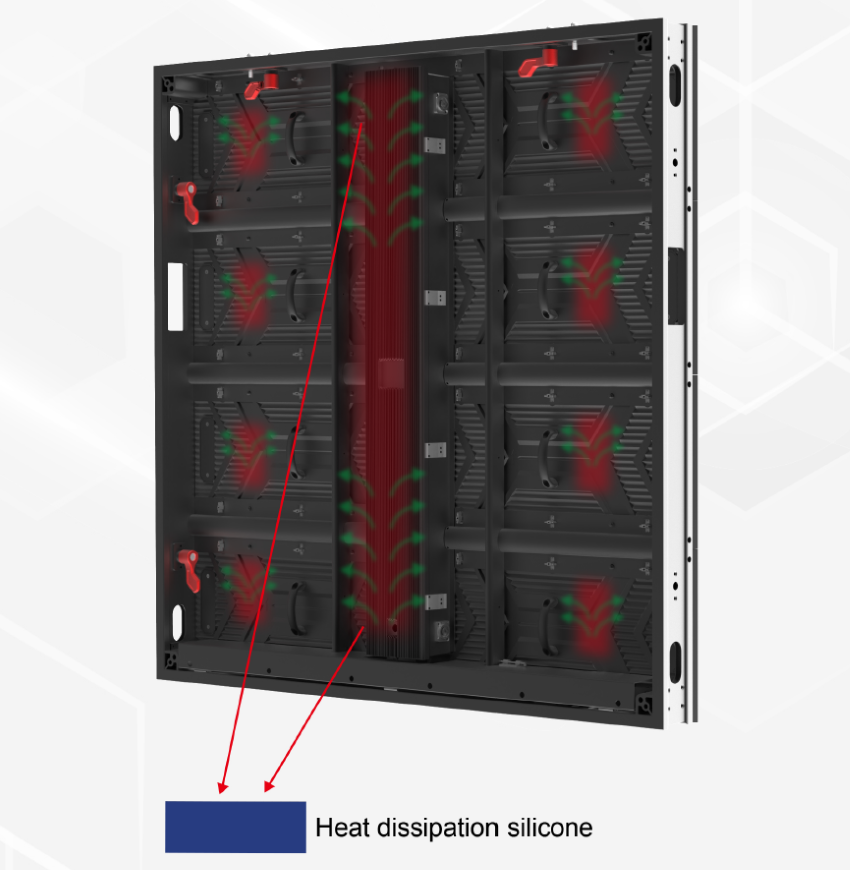

• Heat Dissipation Performance: Features extruded aluminum cabinet with plastic frame module, ensuring high heat dissipation efficiency; the back is equipped with heat dissipation silicone sheets that accelerate heat dissipation through contact heat conduction. The heat dissipation coefficient of aluminum profiles is twice that of die-cast aluminum, and the heat dissipation coefficient of die-cast aluminum is twice that of sheet metal.
• Energy Saving: Compared with regular screens, it achieves 35% energy saving. As a common cathode screen, its average power consumption is 180W/m² (regular screens are 280W/m²) and maximum power consumption is 550W/m² (regular screens are 750W/m²).

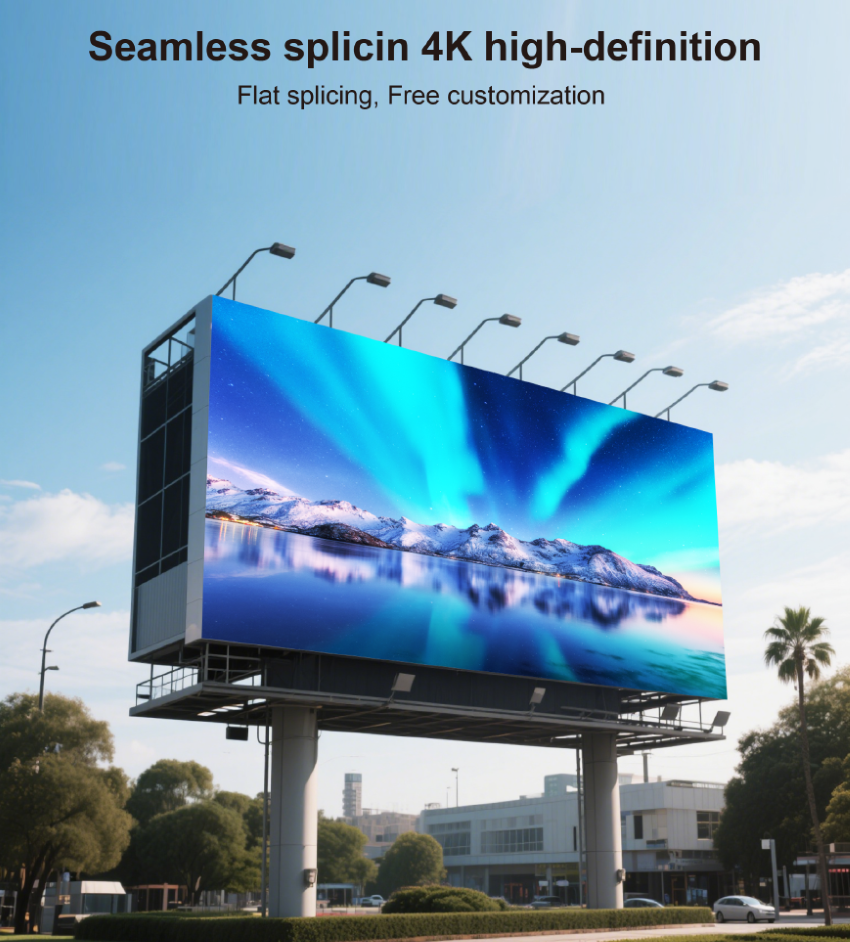

• Display Effect: Delivers ultra-high-definition visual enjoyment with high resolution and stable image display—every detail is clearly visible, and there is no trailing or flickering on the screen; supports seamless splicing and 4K high-definition display, with flat splicing and free customization; adopts reliable fixed design to reshape the visual experience; full color coverage exceeds 36%, covering more details than the NTSC color gamut range, presenting richer and more vivid colors; uses high-brightness LED beads with low defect rate and the latest SMT technology, ensuring more stable product quality.
• Installation & Maintenance: Ultra-thin and lightweight, with high strength and high precision; easy to install and maintain, supporting front and rear dual maintenance (simple operation, quick installation and maintenance, truly saving time and effort); adopts Hub connection for maintenance.

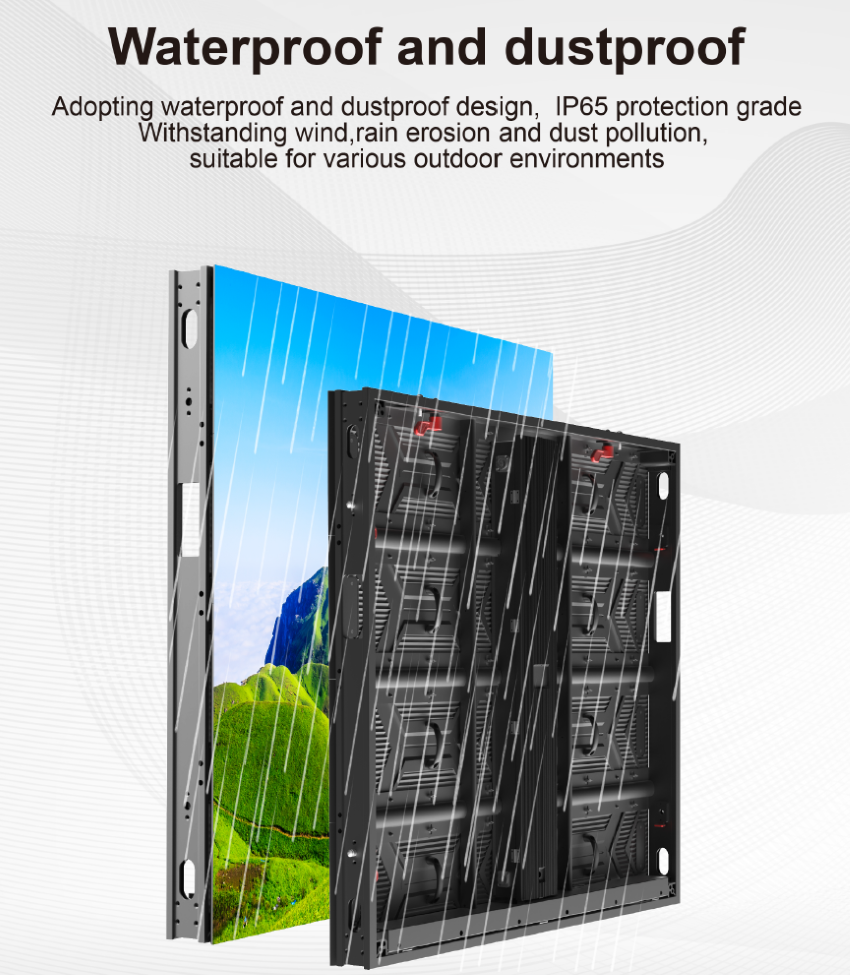

• Protection Performance: Adopts waterproof and dustproof design with IP65 protection grade (front/back), capable of withstanding wind, rain erosion and dust pollution, suitable for various outdoor environments.

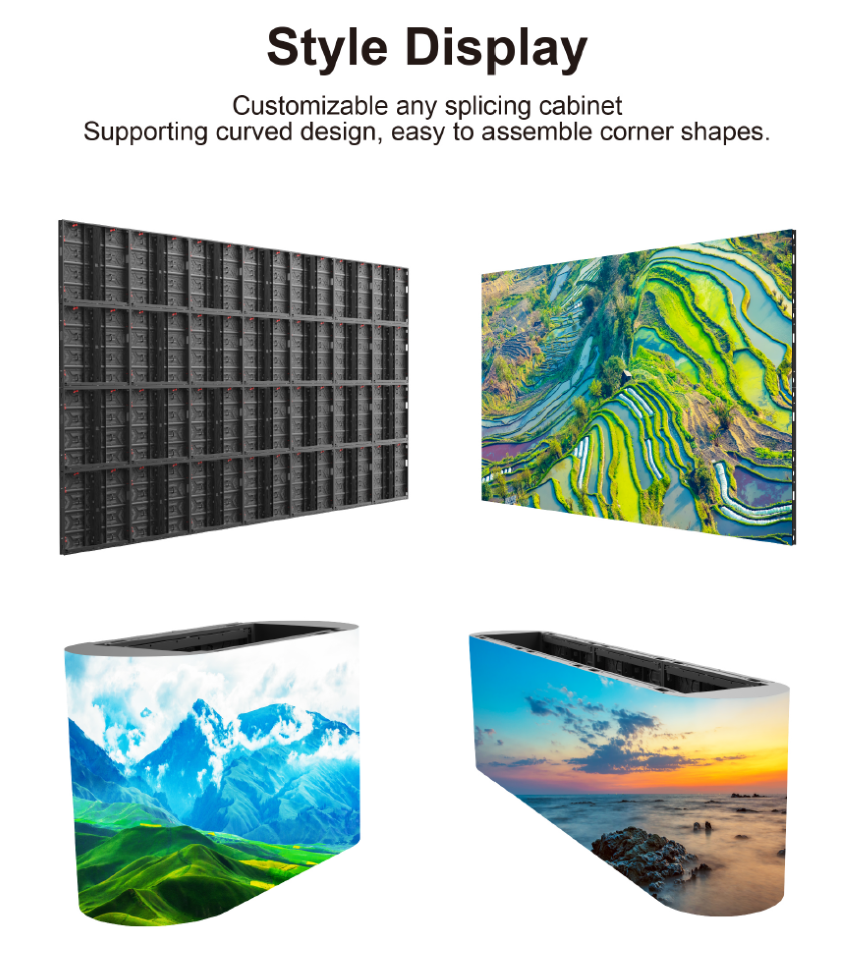

• Design Flexibility: Supports customizable splicing cabinets and curved design, making it easy to assemble corner shapes.

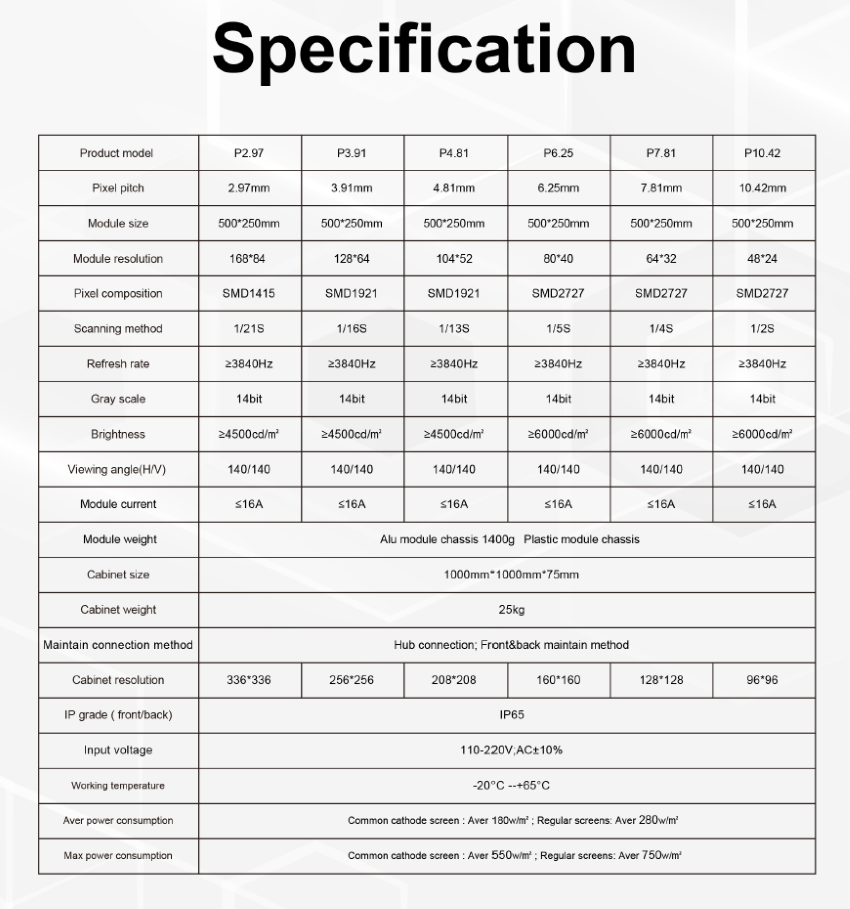

3. Key Performance Indicators

• Refresh rate: ≥3840Hz
• Gray scale: 14bit
• Brightness: ≥4500cd/m² (for P2.97, P3.91, P4.81 models); ≥6000cd/m² (for P6.25, P7.81, P10.42 models)
• Viewing angle (H/V): 140°/140°
• Module current: ≤16A
• Input voltage: 110-220V AC±10%
• Working temperature: -20°C to +65°C
